[Resolved] Show different map marker pins per category

[Author]

Posts

[adamD-12]

Tell us what you are trying to do?

I have custom post type (Clinics) that have a two category (Medical Centres, Molescan Clinics).

-> If the the post assigned in Medical Centres category, I want to show this map maker: hidden link.

-> And if the the post assigned in Molescan Clinics category, I want to show this map maker: hidden link

What is the link to your site?

This is the page showing all locations: hidden link

This is my loop editor code:

[wpv-layout-start]
[wpv-items-found]
<!-- wpv-loop-start -->

<div class="container cc-wrapper">
<div class="row mb-3">
<wpv-loop>

<div class="col-lg-4 col-md-6 themed-grid-col">
<div class="location-wrap">
<div class="clinic-title">[wpv-post-link]</div>
<div class="phone"><i class="fas fa-phone"> <span> [types field='clinic-phone'][/types]</span></div>
<div class="services-offered"><b>Services:</b> <span> [types field='services-offered'][/types]</span></div>
<div class="clinic-website">MORE INFO</div>
</div>
</div>

</wpv-loop>
</div>
</div>

<!-- wpv-loop-end -->
[/wpv-items-found]
[wpv-no-items-found]
[wpml-string context="wpv-views"]No items found[/wpml-string]
[/wpv-no-items-found]

[wpv-layout-end]

[Minesh]

Hello. Thank you for contacting the Toolset support.

What is the view that displays the map marker?

Can you please send me admin access details and once I review you settings I'll be able to guide you in the right direction.

*** Please make a FULL BACKUP of your database and website.***
I would also eventually need to request temporary access (WP-Admin and FTP) to your site. Preferably to a test site where the problem has been replicated if possible in order to be of better help and check if some configurations might need to be changed.

I have set the next reply to private which means only you and I have access to it.

[Minesh]

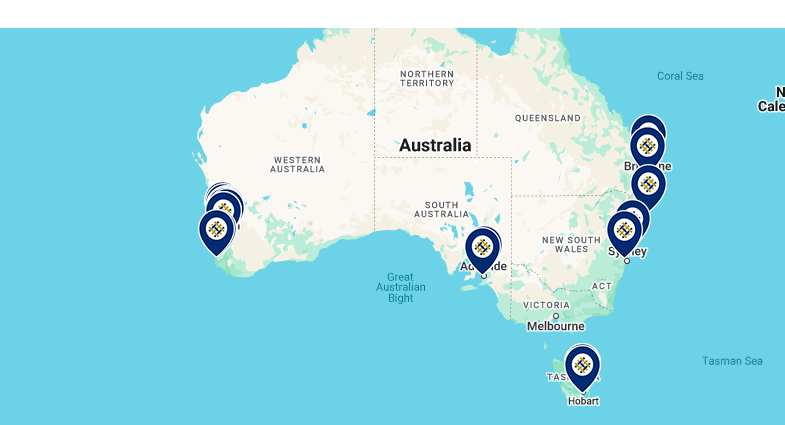

Can you please check now: hidden link

What I've done is from your map block that is added on the following page, I've removed the marker and I've also enable the map option for clustering of marker and minimum group for clustering is set to 4. Please check the following screenshot: hidden link
=> hidden link

Then to the view:
=> hidden link

I've adjusted the View Loop code as given under:

[wpv-layout-start]
	[wpv-items-found]
	<!-- wpv-loop-start -->

<div class="container cc-wrapper">
  <div class="row mb-3">
        <wpv-loop>

[wpv-conditional if="( CONTAINS(#(clinic-category),'medical-centres') )"]

          		[wpv-map-marker map_id='map-3' marker_id='marker-[wpv-post-id]' marker_icon='//molescan.121group.dev/wp-content/uploads/mapmarker-fullerton.png' marker_field='wpcf-clinic-map-address']

          <div class='clinic-title'>[wpv-post-link]</div>
<div class='phone'><i class='fas fa-phone'></i> <span><a href='tel:[types field='clinic-phone'][/types]'> [types field='clinic-phone'][/types]</a></span></div>
<div class='services-offered'><b>Services:</b> <span> [types field='services-offered'][/types]</span></div>
         		[/wpv-map-marker]

          [/wpv-conditional]


          [wpv-conditional if="( CONTAINS(#(clinic-category),'molescan-clinics') )"]
          			[wpv-map-marker map_id='map-3' marker_id='marker-[wpv-post-id]' marker_icon='//molescan.121group.dev/wp-content/uploads/mapmarker-molescan.png' marker_field='wpcf-clinic-map-address']

          <div class='clinic-title'>[wpv-post-link]</div>
<div class='phone'><i class='fas fa-phone'></i> <span><a href='tel:[types field='clinic-phone'][/types]'> [types field='clinic-phone'][/types]</a></span></div>
<div class='services-offered'><b>Services:</b> <span> [types field='services-offered'][/types]</span></div>


          		[/wpv-map-marker]
          [/wpv-conditional]


            <div class="col-lg-4 col-md-6 themed-grid-col">
                <div class="location-wrap">
                        <div class="clinic-title">[wpv-post-link]</div>
                      	<div class="phone"><i class="fas fa-phone"></i> <span><a href="tel:[types field='clinic-phone'][/types]"> [types field='clinic-phone'][/types]</a></span></div>
                  		<div class="services-offered"><b>Services:</b> <span> [types field='services-offered'][/types]</span></div>
                        <div class="clinic-website"><a href="[wpv-post-url]">MORE INFO</a></div>
                </div>
            </div>


        </wpv-loop>
   </div>
</div>


	<!-- wpv-loop-end -->
	[/wpv-items-found]
	[wpv-no-items-found]
		<strong>[wpml-string context="wpv-views"]No items found[/wpml-string]</strong>
	[/wpv-no-items-found]


[wpv-layout-end]

More info:
- https://toolset.com/documentation/legacy-features/views-plugin/displaying-taxonomies-conditionally/#specific
- https://toolset.com/documentation/programmer-reference/maps/maps-shortcodes/#wpv-map-marker

I hope solution shared above will help you to resolve your issue.

[adamD-12]

Hey, Thank you for your help it works. I think much better for future toolset updates to include this set-up to easy to navigate so that all Toolset user not struggling having a code. I mean have a setting to set the conditional on the back-end rather than finding code solution.

I have another request for help. On the search bar, I want to show the closest clinic near me when I search my location address. How can I achieve that?

Like this website: hidden link

[Minesh]

Glad to know that solution I shared help you to resolve your issue.

You can raise the feature request by filling the following form:
- https://toolset.com/home/contact-us/suggest-a-new-feature-for-toolset/

Regarding your addon question, as per our support policy, we entertain only one question per ticket. This will help other users searching on the forum as well as help us to write correct problem resolution summery for the original issue reported.

May I kindly ask you to open a new ticket with every new question you may have.

Thank you for understanding.
