[Resolved] Filter view by related CPT and display on map

This is the technical support forum for Toolset - a suite of plugins for developing WordPress sites without writing PHP.

Everyone can read this forum, but only Toolset clients can post in it. Toolset support works 6 days per week, 19 hours per day.

Sun Mon Tue Wed Thu Fri Sat
- 10:00 – 13:00 10:00 – 13:00 10:00 – 13:00 10:00 – 13:00 10:00 – 13:00 -
- 14:00 – 18:00 14:00 – 18:00 14:00 – 18:00 14:00 – 18:00 14:00 – 18:00 -

Supporter timezone: Asia/Kolkata (GMT+05:30)

This topic contains 8 replies, has 3 voices.

Last updated by Minesh 2 months, 4 weeks ago.

Assisted by: Minesh.

Author
Posts
#2767445

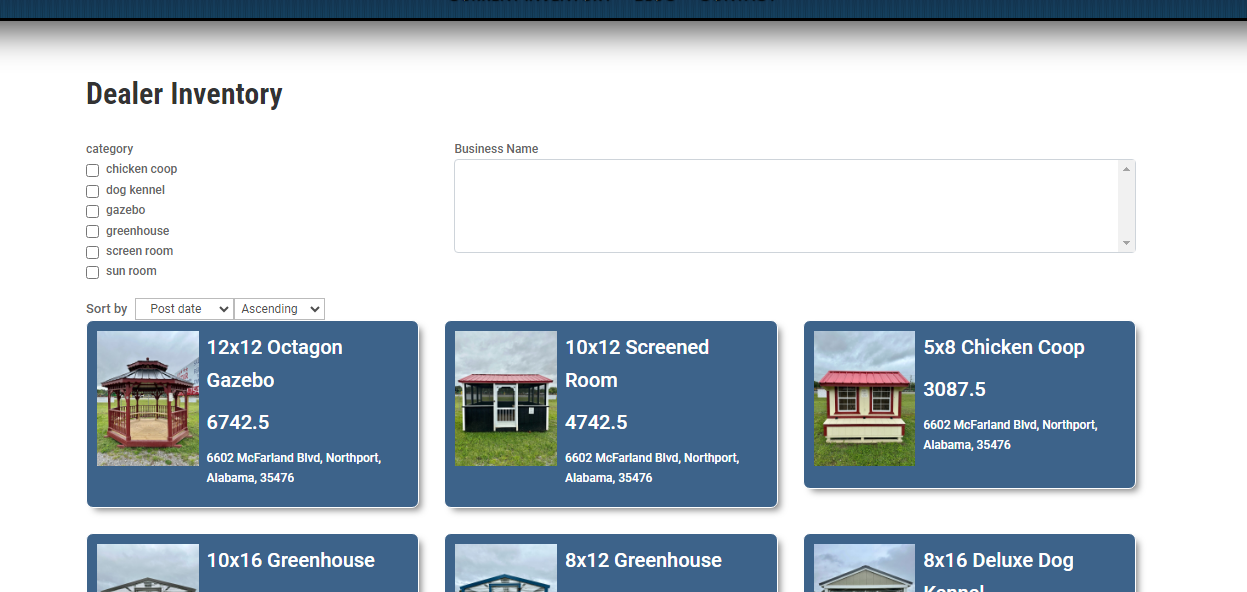

toolset buildings page.png
toolset buildings view dealers filter.png

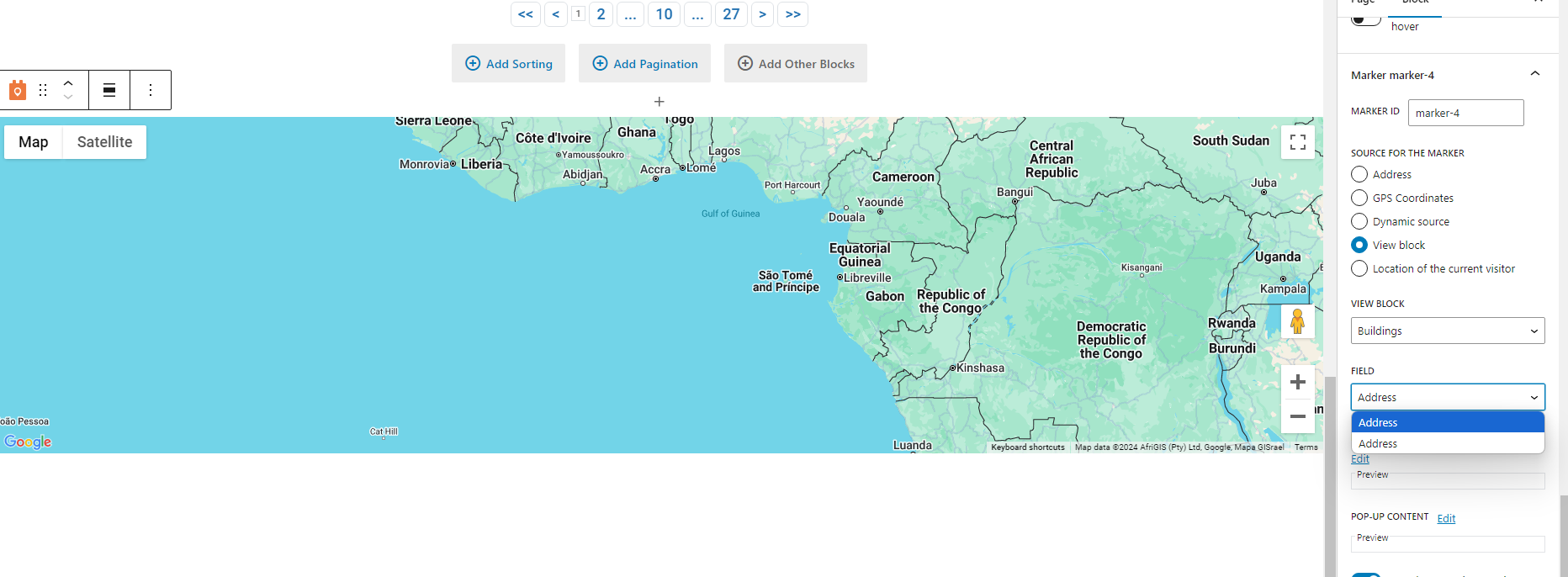

toolset map view settings.png

Tell us what you are trying to do?

A) I have 2 CPTs, Dealers and Buildings. I set up a one to many relationship between them. I have imported the data and created a page with a Toolset View module. The view module is displaying all the buildings to start. I have 2 search filters I added in the View Search section. The first is based on the categories for the buildings and it works fine, however the second filter, which is set to display the related dealers, does not show any dealers on the published page. It does, however show dealers in the editor.

B) I have another problem with the Map module I added below the View module (not inside it). The map will not display the markers for the buildings, which I have set to get the address from the related Dealers CPT. What even more strange is there are two Address fields available to select in the field dropdown for the view block in the marker settings. I checked my Google Maps API key in the Toolset settings and it is working.

C) After I get this working I'm wanting to add a filter to show only the results within a 50 mile radius of an address entered by the customer (with autofill while searching). I think this is probably pretty straight forward.

D) I need all the filters to be automatically engaged via url parameters so I can use this as a landing page for ads targeting specific categories and target locations. Is this possible?
EDIT: I did try hidden link and it does filter by the category, so I think any of the filters are available via URL, right? Is there any documentation on this?

E) No matter what I do I can't get the sort field to change on the live page to the selected field I have in my settings. I want to sort by price but that field is not even available to select for the default order settings or the sorting options. It seems to want to use only the Dealer related fields, not the building fields.

Is there any documentation that you are following?
I did watch/read some of your tutorials/courses/forum, but I don't have the links right now.

Is there a similar example that we can see?
I haven't found one yet.

What is the link to your site?
hidden link

#2769339

Minesh
Supporter

Languages: English (English )

Timezone: Asia/Kolkata (GMT+05:30)

Hello. Thank you for contacting the Toolset support.

As per our support policy, we entertain only one question per ticket. This will help other users searching on the forum as well as help us to write correct problem resolution summery.

With this ticket we will try to address the first issue you mentioned and for other issues, we will create new ticket once we address this issue.

A) I have 2 CPTs, Dealers and Buildings. I set up a one to many relationship between them. I have imported the data and created a page with a Toolset View module. The view module is displaying all the buildings to start. I have 2 search filters I added in the View Search section. The first is based on the categories for the buildings and it works fine, however the second filter, which is set to display the related dealers, does not show any dealers on the published page. It does, however show dealers in the editor.
====>
Can you please share details where you added the view and what post-relationship filter you added and whats not working exactly. Maybe few screenshots would be helpful.

*** Please make a FULL BACKUP of your database and website.***
I would also eventually need to request temporary access (WP-Admin and FTP) to your site. Preferably to a test site where the problem has been replicated if possible in order to be of better help and check if some configurations might need to be changed.

I have set the next reply to private which means only you and I have access to it.

#2777373

Mateus Getulio
Supporter

Languages: English (English )

Timezone: America/Sao_Paulo (GMT-03:00)

Hello there,

This is a quick follow up to let you know Minesh is not available today but he'll be back shortly and reply to you as soon as possible.

Thank you for sharing the access to the site, I tested it and we're able to connect properly.

Thank you for your understanding.
Mateus

#2777609

Minesh
Supporter

Languages: English (English )

Timezone: Asia/Kolkata (GMT+05:30)

First of all, when I checked the plugins page:
-hidden link

I see you are using outdated Toolset plugin version. We always recommend running your site with the latest stable release plugin version.

*** Please make a FULL BACKUP of your database and website.***

Could you please update ALL Toolset plugins to it's latest officially released version. You can download the latest plugin release from your accounts page:
=> https://toolset.com/account/downloads/

Once you update the Toolset plugins, please let me know and I will start to review the issue further.

#2777636

OK I updated the plugins.

#2777640

Minesh
Supporter

Languages: English (English )

Timezone: Asia/Kolkata (GMT+05:30)

Can you please check now: hidden link

I've removed the marker from the map block.
=> hidden link

Then I've added "Fields and Text" block with your view's loop and added the marker shortcode to it as given under: Screenshot: hidden link

[wpv-map-marker map_id='map-7' marker_id='marker-[wpv-post-id]' marker_field='wpcf-address'
item="@dealers-building.parent"][/wpv-map-marker]

Can you please confirm its working as expected now.

More info:
- https://toolset.com/documentation/programmer-reference/maps/maps-shortcodes/#wpv-map-marker

#2777674

That's great. I didn't understand how the shortcodes worked inside the View Loop and interacted with the Map module outside it. This example really helps.

My next issue is the view is not displaying any results when entering an address in the distance filter. Can you look at my settings and tell me if I'm doing something wrong?

#2777842

Minesh
Supporter

Languages: English (English )

Timezone: Asia/Kolkata (GMT+05:30)

As per our support policy, we entertain only one question per ticket. This will help other users searching on the forum as well as help us to write correct problem resolution summery for the original issue reported.

May I kindly ask you to open a new ticket with every new question you may have in future. For now, I've split the ticket with your new question and I will handle it with the following split ticket:
- https://toolset.com/forums/topic/split-filter-view-by-related-cpt-and-display-on-map-distance-filter-shows-empty-results/

You're welcome to mark resolve this ticket.

#2778684

Minesh
Supporter

Languages: English (English )

Timezone: Asia/Kolkata (GMT+05:30)

You're welcome to mark resolve this ticket.
