Types Fields API

This page is part of the documentation about customizing your site using PHP.

To insert Types fields using PHP code, use the following function and syntax:

<?php echo(types_render_field( 'field-slug', array( 'arg1' => 'val1', 'arg2' => 'val2' ) )); ?>

To insert Types user meta fields using PHP code, use the following function and syntax:

<?php echo(types_render_usermeta( 'field-slug', array( 'arg1' => 'val1', 'arg2' => 'val2' ) )); ?>

When using the Types API functions, like types_render_field in this example, you use the normal slug for custom fields. For example, if you have a custom field called “House Price” with a slug house-price, use that slug with the Types API.

However, when you are accessing custom fields through native WordPress functions, you need to prepend the wpcf- prefix to the slug. Continuing from the above example, for native WordPress function to access the “House Price” field, you need to use the wpcf-house-price slug.

Address

Description:

Displays an address field. In order to enable this field, you need Toolset Maps plugin.

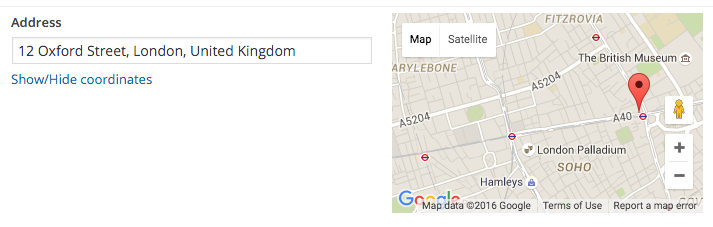

Display in WP admin:
Display in front-end:

Will display the address as text or the latitude/longitude coordinates of the address

attributes:
  • format: Use the literals FIELD_ADDRESS, FIELD_LATITUDE and FIELD_LONGITUDE in the format to output the address

    e.g. format=”FIELD_ADDRESS: FIELD_LATITUDE, FIELD_LONGITUDE”

  • output: 'raw' | 'normal'(default)

    ‘raw’=Display raw data stored in DB. No other formatting attributes (e.g. custom separator) will be respected.

    ‘html’=Wrap data in HTML.

  • show_name: 'if-not-empty' | 'true' | 'false' (default)

    ‘if-not-empty’=Render the field name only when the field value is not empty

    ‘true’=Render the field name

    ‘false’ =Don’t render the field name

More Repeater attributes, User attributes, Term attributes, Usage examples

attributes (repeater):
  • index: zero-based index number of the field to be output

    Index will return a single value of your repeating field

    Read more about repeating fields

  • separator: text or html tags to insert between each field

attributes (user):
  • user_current: "true" - output user field for the logged in user

  • user_id: "id" - output the field for the user with this id

  • user_is_author: "true" - output field for current Post author

    If no user is specified for the usermeta, then the value for the current post author will be displayed (i.e. default).

  • user_name: "name" - output the field for the user with this login name

attributes (term):
  • term_id: "id" - output the field for the term with this id.

    This can be omitted in 2 cases:
    -Inside a taxonomy term archive page, where the global term will be used instead
    -A Taxonomy View, where the current term of the loop will be used instead

How to use this field with:

php:
types_render_field("my-address", array())

Read more about displaying custom fields

shortcode:
[types field='my-address'][/types]
[types field='my-address' format='FIELD_ADDRESS: FIELD_LATITUDE, FIELD_LONGITUDE'][/types]
user meta php:
types_render_usermeta( "user-address", array( "user_current" => true )
user meta shortcode:
[types usermeta='user-address' user_current='true'][/types]
term meta php:
types_render_termmeta( "category-address", array() )
term meta shortcode:
[types termmeta='category-address'][/types]

Audio

Description:

Audio will allow users to upload and play an audio clip on your site.

The Types audio field implements the audio feature of WordPress.

You must be running WordPress 3.6 and above for the audio field to be available.

Display in WP admin:
Display in front-end:
attributes:
  • autoplay: 'on' | 'off' (default)

    Media will start playing as soon as the page loads.

  • item: The “item” attribute is used to get the context when retrieving data from a post that is different from the current one.

  • loop: 'on' | 'off' (default)

    Media will loop to beginning when finished and automatically continue playing

  • output: 'raw' | 'normal'(default)

    ‘raw’=Display raw data stored in DB. No other formatting attributes (e.g. custom separator) will be respected.

    ‘html’=Wrap data in HTML.

  • preload: 'on' | 'off' (default)

    Media will begin downloading as soon as the page is loaded.

  • show_name: 'if-not-empty' | 'true' | 'false' (default)

    ‘if-not-empty’=Render the field name only when the field value is not empty

    ‘true’=Render the field name

    ‘false’ =Don’t render the field name

More Repeater attributes, User attributes, Term attributes, Usage examples

attributes (repeater):
  • index: zero-based index number of the field to be output

    Index will return a single value of your repeating field

    Read more about repeating fields

  • separator: text or html tags to insert between each field

attributes (user):
  • user_current: "true" - output user field for the logged in user

  • user_id: "id" - output the field for the user with this id

  • user_is_author: "true" - output field for current Post author

    If no user is specified for the usermeta, then the value for the current post author will be displayed (i.e. default).

  • user_name: "name" - output the field for the user with this login name

attributes (term):
  • term_id: "id" - output the field for the term with this id.

    This can be omitted in 2 cases:
    -Inside a taxonomy term archive page, where the global term will be used instead
    -A Taxonomy View, where the current term of the loop will be used instead

How to use this field with:

php:
types_render_field( "my-audio-field", array("output" => "raw") )
shortcode:
[types field="my-audio-field" loop="on"][/types]
user meta php:
types_render_usermeta( "my-audio-field", array( "user_current" =&gt; true ) )
user meta shortcode:
[types usermeta="my-audio-field" loop="on"][/types]
term meta php:
types_render_termmeta( "my-audio-field", array() )
term meta shortcode:
[types termmeta="my-audio-field"][/types]

Checkbox

Description:

Checkbox can be used to get binary, yes/no responses from a user.

Display in WP admin:
Display in front-end:

If checkbox is checked, the value 1 will be returned.

If checkbox is not checked, no value will be returned.

If checkbox is not checked, and “Save 0 to the database” is set for the control, 0 will be returned.

If the state attribute is used, then the value between the shortcodes will be returned.

attributes:
  • item: The “item” attribute is used to get the context when retrieving data from a post that is different from the current one.

  • output: 'raw' | 'normal'(default)

    ‘raw’=Display raw data stored in DB. No other formatting attributes (e.g. custom separator) will be respected.

    ‘html’=Wrap data in HTML.

  • show_name: 'if-not-empty' | 'true' | 'false' (default)

    ‘if-not-empty’=Render the field name only when the field value is not empty

    ‘true’=Render the field name

    ‘false’ =Don’t render the field name

  • state: ’unchecked’ | ‘checked’

    If true then the value between the {{types}}{{/types}} will be output.

    For checkboxes state is only valid if option is specified

More Repeater attributes, User attributes, Term attributes, Usage examples

attributes (repeater):

This field does not support repeating values

attributes (user):
  • user_current: "true" - output user field for the logged in user

  • user_id: "id" - output the field for the user with this id

  • user_is_author: "true" - output field for current Post author

    If no user is specified for the usermeta, then the value for the current post author will be displayed (i.e. default).

  • user_name: "name" - output the field for the user with this login name

attributes (term):
  • term_id: "id" - output the field for the term with this id.

    This can be omitted in 2 cases:
    -Inside a taxonomy term archive page, where the global term will be used instead
    -A Taxonomy View, where the current term of the loop will be used instead

How to use this field with:

php:
types_render_field("my-checkbox", array("output" => "raw"))

Read more about displaying custom fields

shortcode:
[types field="my-checkbox"][/types]

Will output the value for the checkbox if checked

user meta php:
types_render_usermeta( "my-field", array( "user_current" => true ) )

Will display the value of the field for the current user.

Read more about displaying user fields

user meta shortcode:
[types usermeta="my-field"][/types]

Will display the value of the field for the post author.

term meta php:
types_render_termmeta( "my-field", array() )
term meta shortcode:
[types termmeta="my-field"][/types]

Checkboxes

Description:

Displays a checkbox group to the user. Checkboxes can be used to get binary, yes/no responses from a user. If “Save 0 to the database” is set for the control, you will not be able to use these fields in a Custom Search later. Read more in this erratum post.

Display in WP admin:
Display in front-end:

With no attributes set, checkboxes will return a comma separated list of values stored for each checked checkbox.

attributes:
  • item: The “item” attribute is used to get the context when retrieving data from a post that is different from the current one.

  • option: "zero-based index number"

    e.g. option=”0″ Will output the value for the option number specified.  For checkboxes, will display the checked valued of the nth checkbox in the group.

  • output: 'raw' | 'normal'(default)

    ‘raw’=Display raw data stored in DB. No other formatting attributes (e.g. custom separator) will be respected.

    ‘html’=Wrap data in HTML.

  • separator: text or html tags to insert between each field

  • show_name: 'if-not-empty' | 'true' | 'false' (default)

    ‘if-not-empty’=Render the field name only when the field value is not empty

    ‘true’=Render the field name

    ‘false’ =Don’t render the field name

  • state: ’unchecked’ | ‘checked’

    If true then the value between the {{types}}{{/types}} will be output.

    For checkboxes state is only valid if option is specified

More Repeater attributes, User attributes, Term attributes, Usage examples

attributes (repeater):

This field does not support repeating values

attributes (user):
  • user_current: "true" - output user field for the logged in user

  • user_id: "id" - output the field for the user with this id

  • user_is_author: "true" - output field for current Post author

    If no user is specified for the usermeta, then the value for the current post author will be displayed (i.e. default).

  • user_name: "name" - output the field for the user with this login name

attributes (term):
  • term_id: "id" - output the field for the term with this id.

    This can be omitted in 2 cases:
    -Inside a taxonomy term archive page, where the global term will be used instead
    -A Taxonomy View, where the current term of the loop will be used instead

How to use this field with:

php:
types_render_field( "my-checkboxes", array( "separator" => ", " ) )

Read more about displaying custom fields

shortcode:
[types field="my-checkboxes"][/types]

Will output a comma separated list of values for each checked checkbox

[types field="my-checkboxes" separator=" - "][/types]

Will output a list of values for each checked checkbox separated by a dash.

[types field="my-checkboxes" option="0"][/types]

Will output the value for the first checkbox in the group

[types field="my-checkboxes" option="0" state="unchecked"][wpml-string context="wpv-views-types-fields"]text to display[/wpml-string][/types]

Will output ‘text to display’ for the first checkbox in the group if it is unchecked

user meta php:
types_render_usermeta( "my-checkboxes", array() )

Read more about displaying user fields

user meta shortcode:
[types usermeta="my-field"][/types]

Will display the value of the field for the post author.

term meta php:
types_render_termeta( "my-field", array() )
term meta shortcode:
[types termeta="my-field"][/types]

Colorpicker

Description:

Displays a interactive colorpicker to the user to select a color value.

Display in WP admin:
Display in front-end:

The hexadecimal RGB color code.

attributes:
  • item: The “item” attribute is used to get the context when retrieving data from a post that is different from the current one.

  • show_name: 'if-not-empty' | 'true' | 'false' (default)

    ‘if-not-empty’=Render the field name only when the field value is not empty

    ‘true’=Render the field name

    ‘false’ =Don’t render the field name

More Repeater attributes, User attributes, Term attributes, Usage examples

attributes (repeater):
  • index: zero-based index number of the field to be output

    Index will return a single value of your repeating field

    Read more about repeating fields

  • separator: text or html tags to insert between each field

attributes (user):
  • user_current: "true" - output user field for the logged in user

  • user_id: "id" - output the field for the user with this id

  • user_is_author: "true" - output field for current Post author

    If no user is specified for the usermeta, then the value for the current post author will be displayed (i.e. default).

  • user_name: "name" - output the field for the user with this login name

attributes (term):
  • term_id: "id" - output the field for the term with this id.

    This can be omitted in 2 cases:
    -Inside a taxonomy term archive page, where the global term will be used instead
    -A Taxonomy View, where the current term of the loop will be used instead

How to use this field with:

php:
types_render_field( "my-colorpicker")
shortcode:
[types field="my-colorpicker"][/types]

Will output a hexadecimal color code e.g. #e869e7.

user meta php:
types_render_usermeta( "my-colorpicker", array( "user_current" => true ) )
user meta shortcode:
[types usermeta="colorpicker"][/types]
term meta php:
types_render_termmeta( "my-colorpicker-field", array() )
term meta shortcode:
[types termmeta="my-colorpicker-field"][/types]

Date

Description:

Displays a datepicker to the user with optional ‘hour’ and ‘minute’ selection.

Display in WP admin:
Display in front-end:

Date can be displayed as a formatted date time text or as a calendar.

attributes:
  • format: any valid WordPress date format

    WordPress date and time formats. Defaults to the Date Format in site General Settings.

  • item: The “item” attribute is used to get the context when retrieving data from a post that is different from the current one.

  • output: 'raw' | 'normal'(default)

    ‘raw’=Display raw data stored in DB. No other formatting attributes (e.g. custom separator) will be respected.

    ‘html’=Wrap data in HTML.

  • show_name: 'if-not-empty' | 'true' | 'false' (default)

    ‘if-not-empty’=Render the field name only when the field value is not empty

    ‘true’=Render the field name

    ‘false’ =Don’t render the field name

  • style: "text" | "calendar"

    “calendar” will show the current month and highlight the current day on the page.

More Repeater attributes, User attributes, Term attributes, Usage examples

attributes (repeater):
  • index: zero-based index number of the field to be output

    Index will return a single value of your repeating field

    Read more about repeating fields

  • separator: text or html tags to insert between each field

attributes (user):
  • user_current: "true" - output user field for the logged in user

  • user_id: "id" - output the field for the user with this id

  • user_is_author: "true" - output field for current Post author

    If no user is specified for the usermeta, then the value for the current post author will be displayed (i.e. default).

  • user_name: "name" - output the field for the user with this login name

attributes (term):
  • term_id: "id" - output the field for the term with this id.

    This can be omitted in 2 cases:
    -Inside a taxonomy term archive page, where the global term will be used instead
    -A Taxonomy View, where the current term of the loop will be used instead

How to use this field with:

php:
types_render_field("my-date", array("style" => "calendar"))

Read more about displaying custom fields

shortcode:
[types field="my-date" style="calendar"][/types]

Will display a calendar on your site with the date value highlighted

[types field="my-date"][/types]

Will display the date formatted according to your site’s WordPress general settings

[types field="my-date" output="raw"][/types]

Will display an integer value for the date from the database

[types field="my-date" format="Y/m/d g:i:s A"][/types]

Will display the date in the format 2015/02/04 8:00:00 AM

user meta php:
types_render_usermeta( "my-field", array( "user_current" => true ) )

Will display the value of the field for the current user.

Read more about displaying user fields

user meta shortcode:
[types usermeta="my-field"][/types]

Will display the value of the field for the post author.

term meta php:
types_render_termmeta( "my-date-field", array() )
term meta shortcode:
[types termmeta="my-date-field"][/types]

Email

Description:

Displays an email input to the user.

Display in WP admin:
Display in front-end:

Will create a mailto email link on your site.

attributes:
  • item: The “item” attribute is used to get the context when retrieving data from a post that is different from the current one.

  • output: 'raw' | 'normal'(default)

    ‘raw’=Display raw data stored in DB. No other formatting attributes (e.g. custom separator) will be respected.

    ‘html’=Wrap data in HTML.

  • show_name: 'if-not-empty' | 'true' | 'false' (default)

    ‘if-not-empty’=Render the field name only when the field value is not empty

    ‘true’=Render the field name

    ‘false’ =Don’t render the field name

attributes (html):
style | title

Html attributes all take string values and will be added unchanged to the anchor link element.  Html attributes will not be added if output=”raw”.

More Repeater attributes, User attributes, Term attributes, Usage examples

attributes (repeater):
  • index: zero-based index number of the field to be output

    Index will return a single value of your repeating field

    Read more about repeating fields

  • separator: text or html tags to insert between each field

attributes (user):
  • user_current: "true" - output user field for the logged in user

  • user_id: "id" - output the field for the user with this id

  • user_is_author: "true" - output field for current Post author

    If no user is specified for the usermeta, then the value for the current post author will be displayed (i.e. default).

  • user_name: "name" - output the field for the user with this login name

attributes (term):
  • term_id: "id" - output the field for the term with this id.

    This can be omitted in 2 cases:
    -Inside a taxonomy term archive page, where the global term will be used instead
    -A Taxonomy View, where the current term of the loop will be used instead

How to use this field with:

php:
types_render_field("my-email", array("title" => "mail me..."))

Read more about displaying custom fields

shortcode:
[types field="my-email"][/types]

Will generate the following

<a href="mailto:my-email@my-domain.com" title="my-email@my-domain.com">my-email@my-domain.com</a>
[types field="my-email" title="mail me..."][/types]

Will generate the following

<a href="mailto:my-email@my-domain.com" title="mail me...">mail me...</a>
[types field="my-email" ouput="raw"][/types]

Will just output the email address as a stringmy-email@my-domain.com

user meta php:
types_render_usermeta( "my-field", array( "user_current" => true ) )

Will display the value of the field for the current user.

Read more about displaying user fields

user meta shortcode:
[types usermeta="my-field"][/types]

Will display the value of the field for the post author.

term meta php:
types_render_termmeta( "my-email-field", array() )
term meta shortcode:
[types termmeta="my-email-field"][/types]

Embedded media

Description:

Embedded media will allow users to upload and display/play a wide range of embedded content on your site.

The Types Embedded media field implements the embedded content feature of WordPress.

You must be running WordPress 3.6 and above for the embedded media field to be available.

If width is specified and less than $content_width, the width will be used, otherwise $content_width will be used.

Display in WP admin:
Display in front-end:
attributes:
  • height: image height (e.g. 300)

    Image will be resized before being sent to the client. width and height will be ignored if size is set. For Embedded media the width and height are maximum values and may be ignored if $content_width is set for the theme.

  • item: The “item” attribute is used to get the context when retrieving data from a post that is different from the current one.

  • output: 'raw' | 'normal'(default)

    ‘raw’=Display raw data stored in DB. No other formatting attributes (e.g. custom separator) will be respected.

    ‘html’=Wrap data in HTML.

  • show_name: 'if-not-empty' | 'true' | 'false' (default)

    ‘if-not-empty’=Render the field name only when the field value is not empty

    ‘true’=Render the field name

    ‘false’ =Don’t render the field name

  • width: image width (e.g. 300)

    Image will be resized before being sent to the client. width and height will be ignored if size is set. For Embedded media the width and height are maximum values and may be ignored if $content_width is set for the theme.

More Repeater attributes, User attributes, Term attributes, Usage examples

attributes (repeater):
  • index: zero-based index number of the field to be output

    Index will return a single value of your repeating field

    Read more about repeating fields

  • separator: text or html tags to insert between each field

attributes (user):
  • user_current: "true" - output user field for the logged in user

  • user_id: "id" - output the field for the user with this id

  • user_is_author: "true" - output field for current Post author

    If no user is specified for the usermeta, then the value for the current post author will be displayed (i.e. default).

  • user_name: "name" - output the field for the user with this login name

attributes (term):
  • term_id: "id" - output the field for the term with this id.

    This can be omitted in 2 cases:
    -Inside a taxonomy term archive page, where the global term will be used instead
    -A Taxonomy View, where the current term of the loop will be used instead

How to use this field with:

php:
types_render_field( "my-embedded-media-field", array("output" => "raw") )
shortcode:
[types field="my-embedded-media-field" width="450" height="320"][/types]
user meta php:
types_render_usermeta( "my-embedded-media-field", array( "user_current" => true ) )
user meta shortcode:
[types field="my-embedded-media-field" width="450" height="320"][/types]
term meta php:
types_render_termmeta( "my-embedded-media--field", array() )
term meta shortcode:
[types termmeta="my-embedded-media-field"][/types]

File

Description:

Display a file upload dialog and provide a link to the file on your site.

Display in WP admin:
Display in front-end:

Will display a link to an uploaded file or the URL of the file.

attributes:
  • item: The “item” attribute is used to get the context when retrieving data from a post that is different from the current one.

  • output: 'raw' | 'normal'(default)

    ‘raw’=Display raw data stored in DB. No other formatting attributes (e.g. custom separator) will be respected.

    ‘html’=Wrap data in HTML.

  • show_name: 'if-not-empty' | 'true' | 'false' (default)

    ‘if-not-empty’=Render the field name only when the field value is not empty

    ‘true’=Render the field name

    ‘false’ =Don’t render the field name

attributes (html):
style | title

html attributes all take string values and will be added unchanged to the file link element.

More Repeater attributes, User attributes, Term attributes, Usage examples

attributes (repeater):
  • index: zero-based index number of the field to be output

    Index will return a single value of your repeating field

    Read more about repeating fields

  • separator: text or html tags to insert between each field

attributes (user):
  • user_current: "true" - output user field for the logged in user

  • user_id: "id" - output the field for the user with this id

  • user_is_author: "true" - output field for current Post author

    If no user is specified for the usermeta, then the value for the current post author will be displayed (i.e. default).

  • user_name: "name" - output the field for the user with this login name

attributes (term):
  • term_id: "id" - output the field for the term with this id.

    This can be omitted in 2 cases:
    -Inside a taxonomy term archive page, where the global term will be used instead
    -A Taxonomy View, where the current term of the loop will be used instead

How to use this field with:

php:
types_render_field("my-file", array("title" => "read me..."))

Read more about displaying custom fields

shortcode:
[types field="my-file"][/types]

Will generate the following

<a href="/path-to-my-file/my-file.pdf" title="/path-to-my-file/my-file.pdf">/path-to-my-file/my-file.pdf</a>
[types field="my-file" title="read me..."][/types]

Will generate the following

<a href="/path-to-my-file/my-file.pdf" title="read me...">read me...</a>
[types field="my-file" ouput="raw"][/types]

Will just output the file link as a string/path-to-my-file/my-file.pdf

user meta php:
types_render_usermeta( "my-field", array( "user_current" => true ) )

Will display the value of the field for the current user.

Read more about displaying user fields

user meta shortcode:
[types usermeta="my-field"][/types]

Will display the value of the field for the post author.

term meta php:
types_render_termmeta( "my-file-field", array() )
term meta shortcode:
[types termmeta="my-file-field"][/types]


Description:

Image will let users upload and display an image on their site

Display in WP admin:
Display in front-end:

HTML <img /> tag for resized image.

If output=”raw”, url of the image will be returned.

If url=”true”, the url of the resized image will be returned.

attributes:
  • align: "center" | "left" | "none"(default) | "right"

    Will add one of the WordPress align classes to the img element (“alignright”, “alignleft”, “aligncenter”). Your theme should define these classes. Read more about aligning images.

  • height: image height (e.g. 300)

    Image will be resized before being sent to the client. width and height will be ignored if size is set. For Embedded media the width and height are maximum values and may be ignored if $content_width is set for the theme.

  • item: The “item” attribute is used to get the context when retrieving data from a post that is different from the current one.

  • output: 'raw' | 'normal'(default)

    ‘raw’=Display raw data stored in DB. No other formatting attributes (e.g. custom separator) will be respected.

    ‘html’=Wrap data in HTML.

  • padding_color: hex color code | 'transparent'

    Transparent works best with png format images. For image fields, padding_color only is applied if resize=”pad”

  • resize: 'crop' | 'proportional' | 'stretch' | 'pad'

    If pad is specified, then the padding_color attribute can be used to set the color or transparency of the padding.

    Default resize attribute is crop. Cropping will only happen if a user sets both width and height. If only one of those values is set cropping will not be executed.

  • show_name: 'if-not-empty' | 'true' | 'false' (default)

    ‘if-not-empty’=Render the field name only when the field value is not empty

    ‘true’=Render the field name

    ‘false’ =Don’t render the field name

  • size: custom image size | 'full' | 'large' | 'medium' | 'thumbnail'

    width and height will be ignored if size is set.

  • url: 'false'(default) | 'true'

    true=output the url of the image instead of the html img tag.

    Works with the size attribute to output the url of the re-sized image

  • width: image width (e.g. 300)

    Image will be resized before being sent to the client. width and height will be ignored if size is set. For Embedded media the width and height are maximum values and may be ignored if $content_width is set for the theme.

attributes (html):
alt | style | title

HTML attributes all take string values and will be added unchanged to the img element.

For the alt and title attributes, you can also use placeholders to output the values of standard image fields added in WordPress: %%TITLE%%, %%ALT%%, %%CAPTION %%, and %%DESCRIPTION%%.

More Repeater attributes, User attributes, Term attributes, Usage examples

attributes (repeater):
  • index: zero-based index number of the field to be output

    Index will return a single value of your repeating field

    Read more about repeating fields

  • separator: text or html tags to insert between each field

attributes (user):
  • user_current: "true" - output user field for the logged in user

  • user_id: "id" - output the field for the user with this id

  • user_is_author: "true" - output field for current Post author

    If no user is specified for the usermeta, then the value for the current post author will be displayed (i.e. default).

  • user_name: "name" - output the field for the user with this login name

attributes (term):
  • term_id: "id" - output the field for the term with this id.

    This can be omitted in 2 cases:
    -Inside a taxonomy term archive page, where the global term will be used instead
    -A Taxonomy View, where the current term of the loop will be used instead

How to use this field with:

php:
types_render_field( "my-image", array( "alt" => "blue bird", "width" => "300", "height" => "200", "proportional" => "true" ) )

Read more about displaying custom fields

shortcode:
[types field="my-image" alt="blue bird" title="Acme logo" class="my-class1 myclass2" style="border:1px solid black;padding:20px" size="thumbnail"]

Will output

<img alt="blue bird" title="Acme logo" class="my-class1 myclass2" style="border:1px solid black;padding:20px" src="http://mysite.com/image-path/my-image-name-150x150.jpg" />
[types field="my-image"  size="thumbnail" url="true"]

Will output

http://mysite.com/image-path/my-image-name-150x150.jpg
[types field="my-image" output="raw"]

Will output

http://mysite.com/image-path/my-image-name.jpg
user meta php:
types_render_usermeta( "my-image", array( "alt" => "blue bird", "width" => "300", "height" => "200", "proportional" => "true", user_id => "1" ) )

Will display the image of the field for the user with user id of 1.

Read more about displaying user fields

user meta shortcode:
[types usermeta="my-field"][/types]

Will display the value of the field for the post author.

term meta php:
types_render_termmeta( "my-image-field", array() )
term meta shortcode:
[types termmeta="my-image-field"][/types]

Number

Description:

Displays a text input to user but forces numeric value to be entered.

Display in WP admin:
Display in front-end:

Raw DB data or HTML formatted output. Also predefined values can be used to set rendering – FIELD_NAME and FIELD_VALUE. This works similar to sprintf() PHP function.

attributes:
  • format: Use the literals FIELD_NAME and FIELD_VALUE in the format to ouput the name and value

    e.g. format=”FIELD_NAME : $ FIELD_VALUE”

  • item: The “item” attribute is used to get the context when retrieving data from a post that is different from the current one.

  • output: 'raw' | 'normal'(default)

    ‘raw’=Display raw data stored in DB. No other formatting attributes (e.g. custom separator) will be respected.

    ‘html’=Wrap data in HTML.

  • show_name: 'if-not-empty' | 'true' | 'false' (default)

    ‘if-not-empty’=Render the field name only when the field value is not empty

    ‘true’=Render the field name

    ‘false’ =Don’t render the field name

More Repeater attributes, User attributes, Term attributes, Usage examples

attributes (repeater):
  • index: zero-based index number of the field to be output

    Index will return a single value of your repeating field

    Read more about repeating fields

  • separator: text or html tags to insert between each field

attributes (user):
  • user_current: "true" - output user field for the logged in user

  • user_id: "id" - output the field for the user with this id

  • user_is_author: "true" - output field for current Post author

    If no user is specified for the usermeta, then the value for the current post author will be displayed (i.e. default).

  • user_name: "name" - output the field for the user with this login name

attributes (term):
  • term_id: "id" - output the field for the term with this id.

    This can be omitted in 2 cases:
    -Inside a taxonomy term archive page, where the global term will be used instead
    -A Taxonomy View, where the current term of the loop will be used instead

How to use this field with:

php:
types_render_field("my-number", array("style" => "FIELD_NAME : $ FIELD_VALUE"))

Read more about displaying custom fields

shortcode:
[types field="my-number" format="FIELD_NAME : $ FIELD_VALUE"][/types]

Will generate the following
Price : $ 100

user meta php:
types_render_usermeta( "my-field", array( "user_current" => true ) )

Will display the value of the field for the current user.

Read more about displaying user fields

user meta shortcode:
[types usermeta="my-field"][/types]

Will display the value of the field for the post author.

term meta php:
types_render_termmeta( "my-field", array() )
term meta shortcode:
[types termmeta="my-field"][/types]

Phone

Description:

Displays a text input for user, phone behaves the same as single line input with no additional validation.

Display in WP admin:
Display in front-end:
attributes:
  • item: The “item” attribute is used to get the context when retrieving data from a post that is different from the current one.

  • output: 'raw' | 'normal'(default)

    ‘raw’=Display raw data stored in DB. No other formatting attributes (e.g. custom separator) will be respected.

    ‘html’=Wrap data in HTML.

  • show_name: 'if-not-empty' | 'true' | 'false' (default)

    ‘if-not-empty’=Render the field name only when the field value is not empty

    ‘true’=Render the field name

    ‘false’ =Don’t render the field name

More Repeater attributes, User attributes, Term attributes, Usage examples

attributes (repeater):
  • index: zero-based index number of the field to be output

    Index will return a single value of your repeating field

    Read more about repeating fields

  • separator: text or html tags to insert between each field

attributes (user):
  • user_current: "true" - output user field for the logged in user

  • user_id: "id" - output the field for the user with this id

  • user_is_author: "true" - output field for current Post author

    If no user is specified for the usermeta, then the value for the current post author will be displayed (i.e. default).

  • user_name: "name" - output the field for the user with this login name

attributes (term):
  • term_id: "id" - output the field for the term with this id.

    This can be omitted in 2 cases:
    -Inside a taxonomy term archive page, where the global term will be used instead
    -A Taxonomy View, where the current term of the loop will be used instead

How to use this field with:

php:
types_render_field( "my-phone-field", array() )
shortcode:
[types field="my-phone-field"]
user meta php:
types_render_usermeta( "my-phone-field", array() )
user meta shortcode:
[types usermeta="my-phone-field"][/types]
term meta php:
types_render_termmeta( "my-phone-field", array() )
term meta shortcode:
[types termmeta="my-phone-field"][/types]

Radio

Description:

Radio buttons allow users to select just one option from a group of options.

Display in WP admin:
Display in front-end:

Will display the title for the selected radio option

attributes:
  • item: The “item” attribute is used to get the context when retrieving data from a post that is different from the current one.

  • output: 'raw' | 'normal'(default)

    ‘raw’=Display raw data stored in DB. No other formatting attributes (e.g. custom separator) will be respected.

    ‘html’=Wrap data in HTML.

  • show_name: 'if-not-empty' | 'true' | 'false' (default)

    ‘if-not-empty’=Render the field name only when the field value is not empty

    ‘true’=Render the field name

    ‘false’ =Don’t render the field name

More Repeater attributes, User attributes, Term attributes, Usage examples

attributes (repeater):
  • index: zero-based index number of the field to be output

    Index will return a single value of your repeating field

    Read more about repeating fields

  • separator: text or html tags to insert between each field

attributes (user):
  • user_current: "true" - output user field for the logged in user

  • user_id: "id" - output the field for the user with this id

  • user_is_author: "true" - output field for current Post author

    If no user is specified for the usermeta, then the value for the current post author will be displayed (i.e. default).

  • user_name: "name" - output the field for the user with this login name

attributes (term):
  • term_id: "id" - output the field for the term with this id.

    This can be omitted in 2 cases:
    -Inside a taxonomy term archive page, where the global term will be used instead
    -A Taxonomy View, where the current term of the loop will be used instead

How to use this field with:

php:
types_render_field("my-radio", array())

Read more about displaying custom fields

shortcode:
[types field="my-radio"][/types]

Will output the title for the selected option

user meta php:
types_render_usermeta( "my-field", array( "user_current" => true ) )

Will display the value of the field for the current user.

Read more about displaying user fields

user meta shortcode:
[types usermeta="my-field"][/types]

Will display the value of the field for the post author.

term meta php:
types_render_termmeta( "my-field", array() )
term meta shortcode:
[types termmeta="my-field"][/types]

Select

Description:

Displays a select box to the user.

Display in WP admin:
Display in front-end:

The option title will be output, or if set, a specific value.

attributes:
  • item: The “item” attribute is used to get the context when retrieving data from a post that is different from the current one.

  • output: 'raw' | 'normal'(default)

    ‘raw’=Display raw data stored in DB. No other formatting attributes (e.g. custom separator) will be respected.

    ‘html’=Wrap data in HTML.

  • show_name: 'if-not-empty' | 'true' | 'false' (default)

    ‘if-not-empty’=Render the field name only when the field value is not empty

    ‘true’=Render the field name

    ‘false’ =Don’t render the field name

More Repeater attributes, User attributes, Term attributes, Usage examples

attributes (repeater):
  • index: zero-based index number of the field to be output

    Index will return a single value of your repeating field

    Read more about repeating fields

  • separator: text or html tags to insert between each field

attributes (user):
  • user_current: "true" - output user field for the logged in user

  • user_id: "id" - output the field for the user with this id

  • user_is_author: "true" - output field for current Post author

    If no user is specified for the usermeta, then the value for the current post author will be displayed (i.e. default).

  • user_name: "name" - output the field for the user with this login name

attributes (term):
  • term_id: "id" - output the field for the term with this id.

    This can be omitted in 2 cases:
    -Inside a taxonomy term archive page, where the global term will be used instead
    -A Taxonomy View, where the current term of the loop will be used instead

How to use this field with:

php:
types_render_field("my-select", array( ))

Read more about displaying custom fields

shortcode:
[types field="my-select"][/types]
user meta php:
types_render_usermeta( "my-field", array( "user_current" => true ) )

Will display the value of the field for the current user.

Read more about displaying user fields

user meta shortcode:
[types usermeta="my-field"][/types]

Will display the value of the field for the post author.

term meta php:
types_render_termmeta( "my-field", array() )
term meta shortcode:
[types termmeta="my-field"][/types]

Skype

Description:

Specify Skype id and button style and display an interactive Skype button on your site.

Display in WP admin:
Display in front-end:

Displays a Skype button, optionally with status to allow uses to place a Skype call from your site.

attributes:
  • button: 'bubble' | 'rounded' | 'rectangle'

    ‘bubble’= Fix positioned icon at the bottom right of the site. Should only be used once per site as multiple uses would overlap each other.
    ’rounded’= Placed in the position of the shortcode.
    ‘rectangle’= Placed in the position of the shortcode.

  • button-color: hex color code (default: #00AFF0)

    Background color of the button.

  • button-icon: 'enabled' (default) | 'disabled'

    Only available for button ’rounded’ and ‘rectangle’

  • button-label: Custom Label (default: "Contact us")

    Only available for button ’rounded’ and ‘rectangle’

  • chat-color: hex color code (default: #80DDFF)

    The background color of the incoming chat messages.

  • item: The “item” attribute is used to get the context when retrieving data from a post that is different from the current one.

  • output: 'raw' | 'normal'(default)

    ‘raw’=Display raw data stored in DB. No other formatting attributes (e.g. custom separator) will be respected.

    ‘html’=Wrap data in HTML.

  • receiver: 'user' (default) | 'bot'

    To learn more about Skype Bots see https://dev.skype.com/bots

  • show_name: 'if-not-empty' | 'true' | 'false' (default)

    ‘if-not-empty’=Render the field name only when the field value is not empty

    ‘true’=Render the field name

    ‘false’ =Don’t render the field name

More Repeater attributes, User attributes, Term attributes, Usage examples

attributes (repeater):
  • index: zero-based index number of the field to be output

    Index will return a single value of your repeating field

    Read more about repeating fields

  • separator: text or html tags to insert between each field

attributes (user):
  • user_current: "true" - output user field for the logged in user

  • user_id: "id" - output the field for the user with this id

  • user_is_author: "true" - output field for current Post author

    If no user is specified for the usermeta, then the value for the current post author will be displayed (i.e. default).

  • user_name: "name" - output the field for the user with this login name

attributes (term):
  • term_id: "id" - output the field for the term with this id.

    This can be omitted in 2 cases:
    -Inside a taxonomy term archive page, where the global term will be used instead
    -A Taxonomy View, where the current term of the loop will be used instead

How to use this field with:

php:
types_render_field( "my-skype", array( "button" => "bubble" ) );

Read more about displaying custom fields

shortcode:
[types field="my-skype" button="bubble"][/types]
user meta php:
types_render_usermeta( "my-field", array( "user_current" => true ) )

Will display the value of the field for the current user.

Read more about displaying user fields

user meta shortcode:
[types usermeta="my-field"][/types]

Will display the value of the field for the post author.

term meta php:
types_render_termmeta( "my-skype-field", array() )
term meta shortcode:
[types termmeta="my-skype-field"][/types]

Textarea

Description:

Displays a textarea for user input. In the Types interface, this field is called “Multiple lines”

Display in WP admin:
Display in front-end:

Displays multi-line text on your site.

attributes:
  • item: The “item” attribute is used to get the context when retrieving data from a post that is different from the current one.

  • output: 'raw' | 'normal'(default)

    ‘raw’=Display raw data stored in DB. No other formatting attributes (e.g. custom separator) will be respected.

    ‘html’=Wrap data in HTML.

  • show_name: 'if-not-empty' | 'true' | 'false' (default)

    ‘if-not-empty’=Render the field name only when the field value is not empty

    ‘true’=Render the field name

    ‘false’ =Don’t render the field name

  • suppress_filters: 'true' | 'false' (default)

    If suppress_filters=’true’, all third party (non WordPress) filters hooked into the_content filter will be removed, when retrieving the WYSIWYG content. In certain circumstances, plugins using this filter can add duplicated content to the WYSIWYG content – removing the filters can resolve this problem.

More Repeater attributes, User attributes, Term attributes, Usage examples

attributes (repeater):
  • index: zero-based index number of the field to be output

    Index will return a single value of your repeating field

    Read more about repeating fields

  • separator: text or html tags to insert between each field

attributes (user):
  • user_current: "true" - output user field for the logged in user

  • user_id: "id" - output the field for the user with this id

  • user_is_author: "true" - output field for current Post author

    If no user is specified for the usermeta, then the value for the current post author will be displayed (i.e. default).

  • user_name: "name" - output the field for the user with this login name

attributes (term):
  • term_id: "id" - output the field for the term with this id.

    This can be omitted in 2 cases:
    -Inside a taxonomy term archive page, where the global term will be used instead
    -A Taxonomy View, where the current term of the loop will be used instead

How to use this field with:

php:
types_render_field( "my-textarea", array( ) )

Read more about displaying custom fields

shortcode:
[types field="my-textarea"][/types]
user meta php:
types_render_usermeta( "my-field", array( "user_current" => true ) )

Will display the value of the field for the current user.

Read more about displaying user fields]

user meta shortcode:
[types usermeta="my-field"][/types]

Will display the value of the field for the post author.

term meta php:
types_render_termmeta( "my-textarea-field", array() )
term meta shortcode:
[types termmeta="my-textarea-field"][/types]

Textfield

Description:

Input and displays a single line text input to the user. In the Types interface, this field is called “Single line”

Display in WP admin:
Display in front-end:

Display a text string on your site.

attributes:
  • item: The “item” attribute is used to get the context when retrieving data from a post that is different from the current one.

  • output: 'raw' | 'normal'(default)

    ‘raw’=Display raw data stored in DB. No other formatting attributes (e.g. custom separator) will be respected.

    ‘html’=Wrap data in HTML.

  • show_name: 'if-not-empty' | 'true' | 'false' (default)

    ‘if-not-empty’=Render the field name only when the field value is not empty

    ‘true’=Render the field name

    ‘false’ =Don’t render the field name

More Repeater attributes, User attributes, Term attributes, Usage examples

attributes (repeater):
  • index: zero-based index number of the field to be output

    Index will return a single value of your repeating field

    Read more about repeating fields

  • separator: text or html tags to insert between each field

attributes (user):
  • user_current: "true" - output user field for the logged in user

  • user_id: "id" - output the field for the user with this id

  • user_is_author: "true" - output field for current Post author

    If no user is specified for the usermeta, then the value for the current post author will be displayed (i.e. default).

  • user_name: "name" - output the field for the user with this login name

attributes (term):
  • term_id: "id" - output the field for the term with this id.

    This can be omitted in 2 cases:
    -Inside a taxonomy term archive page, where the global term will be used instead
    -A Taxonomy View, where the current term of the loop will be used instead

How to use this field with:

php:
types_render_field( "my-singlelinetext", array( ) )

Read more about displaying custom fields

shortcode:
[types field="my-singlelinetext"][/types]

Will output a text string on your site

user meta php:
types_render_usermeta( "my-field", array( "user_current" => true ) )

Will display the value of the field for the current user.

Read more about displaying user fields

user meta shortcode:
[types usermeta="my-field"][/types]

Will display the value of the field for the post author.

term meta php:
types_render_termmeta( "my-text-field", array() )
term meta shortcode:
[types termmeta="my-text-field"][/types]

URL

Description:

Displays a URL input to the user and validates input.

Display in WP admin:
Display in front-end:

Displays an external or internal clickable link on your site. With output=”raw” just the text of the link will be output.

attributes:
  • item: The “item” attribute is used to get the context when retrieving data from a post that is different from the current one.

  • no_protocol: "true" | "false" (default)

    Display URL without protocol “http:// and https://”.

  • output: 'raw' | 'normal'(default)

    ‘raw’=Display raw data stored in DB. No other formatting attributes (e.g. custom separator) will be respected.

    ‘html’=Wrap data in HTML.

  • show_name: 'if-not-empty' | 'true' | 'false' (default)

    ‘if-not-empty’=Render the field name only when the field value is not empty

    ‘true’=Render the field name

    ‘false’ =Don’t render the field name

  • target: "_blank" | "_self" | "_parent" | "_top" | "framename"

    _blank: Opens in a new window or tab. _self: Opens in the same frame as it was clicked. _parent: Opens in the parent frame. _top: Opens in the full body of the window. framename: Opens in a named frame

attributes (html):
style | title

html attributes all take string values and will be added unchanged to the anchor link element.

More Repeater attributes, User attributes, Term attributes, Usage examples

attributes (repeater):
  • index: zero-based index number of the field to be output

    Index will return a single value of your repeating field

    Read more about repeating fields

  • separator: text or html tags to insert between each field

attributes (user):
  • user_current: "true" - output user field for the logged in user

  • user_id: "id" - output the field for the user with this id

  • user_is_author: "true" - output field for current Post author

    If no user is specified for the usermeta, then the value for the current post author will be displayed (i.e. default).

  • user_name: "name" - output the field for the user with this login name

attributes (term):
  • term_id: "id" - output the field for the term with this id.

    This can be omitted in 2 cases:
    -Inside a taxonomy term archive page, where the global term will be used instead
    -A Taxonomy View, where the current term of the loop will be used instead

How to use this field with:

php:
types_render_field("my-link", array("title" => "got to look at this"))

Read more about displaying custom fields

shortcode:
[types field="my-link"][/types]

Will generate the following

<a href="/path-to-my-link/my-link/" title="/path-to-my-link/my-link/">/path-to-my-link/my-link/</a>
[types field="my-link" title="got to look at this"][/types]

Will generate the following

<a href="/path-to-my-link/my-link/" title="got to look at this">got to look at this</a>
[types field="my-link" output="raw"][/types]

Will just output the URL link as a string
/path-to-my-link/my-link/

user meta php:
types_render_usermeta( "my-field", array( "user_current" => true ) )

Will display the value of the field for the current user.

Read more about displaying user fields

user meta shortcode:
[types usermeta="my-field"][/types]

Will display the value of the field for the post author.

term meta php:
types_render_termmeta( "my-url-field", array() )
term meta shortcode:
[types termmeta="my-url-field"][/types]

Video

Description:

Video will allow users to upload and play a video clip on your site.

The Types video field implements the video feature of WordPress.

You must be running WordPress 3.6 and above for the video field to be available.

Display in WP admin:
Display in front-end:
attributes:
  • autoplay: 'on' | 'off' (default)

    Media will start playing as soon as the page loads.

  • height: image height (e.g. 300)

    Image will be resized before being sent to the client. width and height will be ignored if size is set. For Embedded media the width and height are maximum values and may be ignored if $content_width is set for the theme.

  • item: The “item” attribute is used to get the context when retrieving data from a post that is different from the current one.

  • loop: 'on' | 'off' (default)

    Media will loop to beginning when finished and automatically continue playing

  • padding_color: hex color code | 'transparent'

    Transparent works best with png format images. For image fields, padding_color only is applied if resize=”pad”

  • poster: 'image URL'

    The poster image will be displayed while the video is not playing. The image height will be set to match the height of the video container.

  • preload: 'on' | 'off' (default)

    Media will begin downloading as soon as the page is loaded.

  • show_name: 'if-not-empty' | 'true' | 'false' (default)

    ‘if-not-empty’=Render the field name only when the field value is not empty

    ‘true’=Render the field name

    ‘false’ =Don’t render the field name

  • width: image width (e.g. 300)

    Image will be resized before being sent to the client. width and height will be ignored if size is set. For Embedded media the width and height are maximum values and may be ignored if $content_width is set for the theme.

More Repeater attributes, User attributes, Term attributes, Usage examples

attributes (repeater):
  • index: zero-based index number of the field to be output

    Index will return a single value of your repeating field

    Read more about repeating fields

  • separator: text or html tags to insert between each field

attributes (user):
  • user_current: "true" - output user field for the logged in user

  • user_id: "id" - output the field for the user with this id

  • user_is_author: "true" - output field for current Post author

    If no user is specified for the usermeta, then the value for the current post author will be displayed (i.e. default).

  • user_name: "name" - output the field for the user with this login name

attributes (term):
  • term_id: "id" - output the field for the term with this id.

    This can be omitted in 2 cases:
    -Inside a taxonomy term archive page, where the global term will be used instead
    -A Taxonomy View, where the current term of the loop will be used instead

How to use this field with:

php:
types_render_field( "my-video", array("output" => "raw") )
shortcode:
[types field="my-video-field" width="625" height="469" poster="&#47;wp-content&#47;uploads&#47;2013&#47;09&#47;Tricholoma_terreum.jpg" loop="on"][/types]
user meta php:
types_render_usermeta( "my-video", array( "user_current" => true ) )
user meta shortcode:
[types usermeta="my-video-field" width="625" height="469" poster="&#47;wp-content&#47;uploads&#47;2013&#47;09&#47;Tricholoma_terreum.jpg" loop="on"][/types]
term meta php:
types_render_termmeta( "my-video-field", array() )
term meta shortcode:
[types termmeta="my-video-field"][/types]

WYSIWYG

Description:

Displays a WYSIWYG editor to the user.

Display in WP admin:
Display in front-end:

Allows same input as Post body. Shortcodes, images and other elements get resolved.

attributes:
  • item: The “item” attribute is used to get the context when retrieving data from a post that is different from the current one.

  • output: 'raw' | 'normal'(default)

    ‘raw’=Display raw data stored in DB. No other formatting attributes (e.g. custom separator) will be respected.

    ‘html’=Wrap data in HTML.

  • show_name: 'if-not-empty' | 'true' | 'false' (default)

    ‘if-not-empty’=Render the field name only when the field value is not empty

    ‘true’=Render the field name

    ‘false’ =Don’t render the field name

  • suppress_filters: 'true' | 'false' (default)

    If suppress_filters=’true’, all third party (non WordPress) filters hooked into the_content filter will be removed, when retrieving the WYSIWYG content. In certain circumstances, plugins using this filter can add duplicated content to the WYSIWYG content – removing the filters can resolve this problem.

More Repeater attributes, User attributes, Term attributes, Usage examples

attributes (repeater):
  • index: zero-based index number of the field to be output

    Index will return a single value of your repeating field

    Read more about repeating fields

  • separator: text or html tags to insert between each field

attributes (user):
  • user_current: "true" - output user field for the logged in user

  • user_id: "id" - output the field for the user with this id

  • user_is_author: "true" - output field for current Post author

    If no user is specified for the usermeta, then the value for the current post author will be displayed (i.e. default).

  • user_name: "name" - output the field for the user with this login name

attributes (term):
  • term_id: "id" - output the field for the term with this id.

    This can be omitted in 2 cases:
    -Inside a taxonomy term archive page, where the global term will be used instead
    -A Taxonomy View, where the current term of the loop will be used instead

How to use this field with:

php:
types_render_field("my-wysiwyg", array( ))

Read more about displaying custom fields

shortcode:
[types field="my-wysiwyg"][/types]
user meta php:
types_render_usermeta( "my-field", array( "user_current" => true ) )

Will display the value of the field for the current user.

Read more about displaying user fields

user meta shortcode:
[types usermeta="my-field"][/types]

Will display the value of the field for the post author.

term meta php:
types_render_termmeta( "my-field", array() )
term meta shortcode:
[types termmeta="my-field"][/types]
